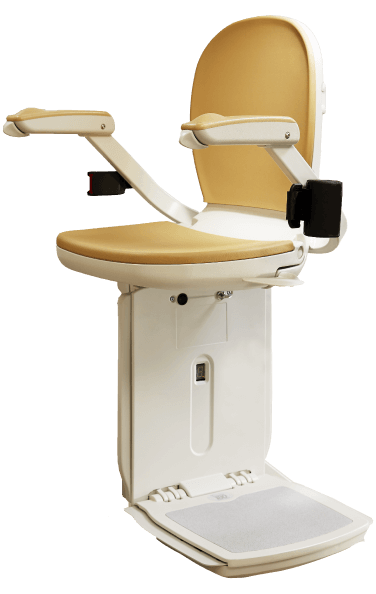

ACORN 180

CURVED STAIRLIFT

A curved stairlift is named for the curved rail it runs on. The name can be misleading because it suggests a stairlift which is only suitable for gently curving stairs. In fact, a ‘curved stairlift’ is for any non-straight stairs with turns, angles or bends anywhere along their length. The rail must curve around the corners for a smooth ride. Every curved stairlift rail is individually made to precisely follow the contours of the stairs it’s installed on. That’s why curved stairlifts take a little longer to install and cost more to buy. A home survey is essential for an accurate quote.

Request Survey For Price
acorn 180 curved

AN ADAPTABLE SOLUTION

The Acorn 180 Curved Stairlift is a highly adaptable and versatile solution for more complex stairs. With other suppliers, stairlift customers might wait several weeks while their unique curved rail is manufactured in a factory before shipping to their home… but not with Acorn. Its patented FastTrack® system uses a parts library of ready-made interlocking rail sections. After a home survey identifies which sections are needed, they are picked from stock and assembled in the customer’s home in just a few hours. An Acorn 180 Curved Stairlift can be installed within days of an order.

Safety

The Acorn 180 Curved Stairlift shares the same comprehensive range of inbuilt safety features as its straight rail brother.

  • RELIABLE BATTERY POWER
  • AUTO-STOP SENSORS
  • 3-POINT SEATBELT

Features

Acorn’s Curved Stairlift is equipped with an impressive range of comfort, safety and usability features, all supplied as standard.

  • ERGONOMIC SEAT/BACKREST
  • INTUITIVE CONTROLS
  • TWIN REMOTE CONTROLS

GET A FREE PRICE QUOTE

Get in touch with a specialist to find out which stairlift is best for you!

SPECIFICATIONS

The Acorn 180 Curved Stairlift runs smoothly along a single blank-faced rail designed to blend with your home’s décor. The FastTrack® modular rail system has slashed customer waiting times for a curved stairlift. The maximum carrying capacity of the Acorn 180 is 264lbs.

  • SMOOTH & GENTLE RIDE
  • BLANK-FACED RAIL DESIGN
  • STYLISH AND STRONG
stairlift outline
Dimensions inch
Overall height 38.5
Height of Seat 17.25
Overall depth (from wall) 22.5
Overall depth (when folded) 12.25
Width of footrest 12.25
Overall width 23.25
Depth of seat 16
Specifications
Motor output speed 120mm/s | 4.8inches per second - No greater than 0.15 meters per second
Method of drive Rack and pinion
Power supply 24V DC (battery)
Maximum capacity 280lbs/127kg
Track Extruded aluminium
Mains supply 50-60Hz, 100-240V AC
